TU-D, 4 TILL 61 MM specifications
-
- TU-D
Extensive information
Information
For more information about our products, please contact us . We offer a wide overview of brochures and photo material for orientation.
We also develop customized 'specials', in line with your wishes and requirements.
We also develop customized 'specials', in line with your wishes and requirements.

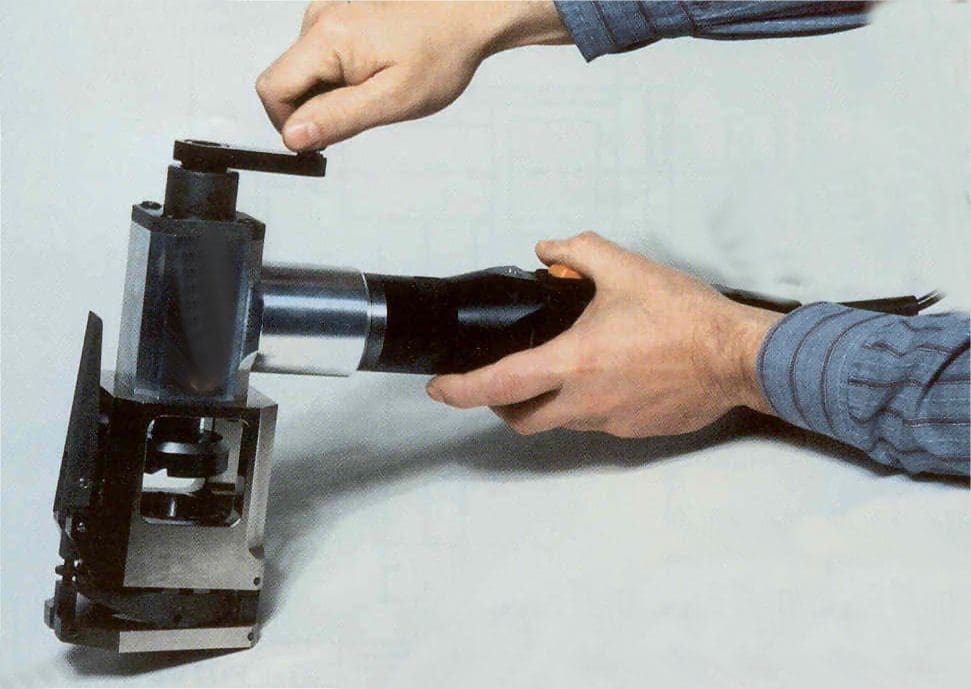

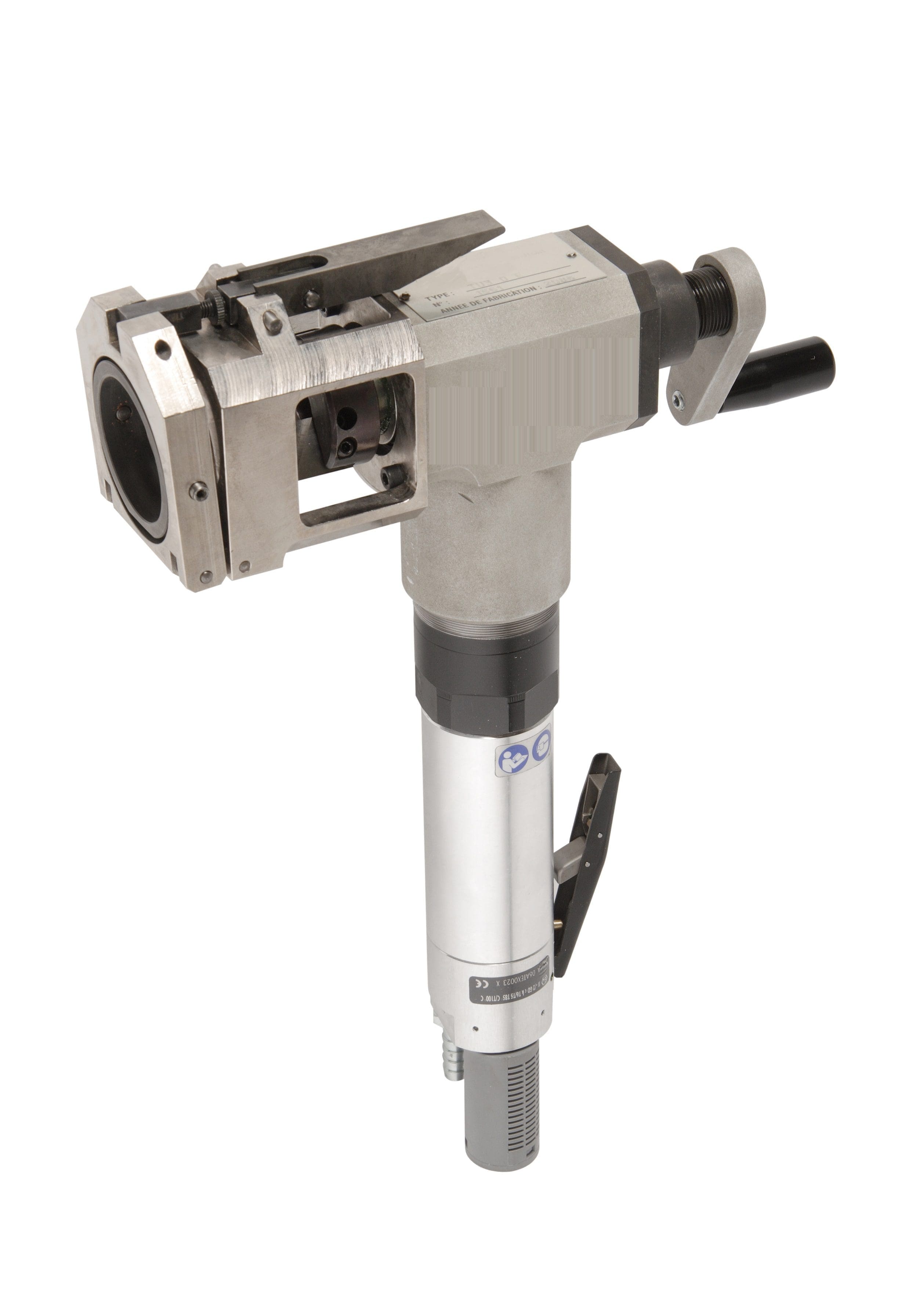

The TU-D machine can be equipped with an electric 220V or a pneumatic drive.

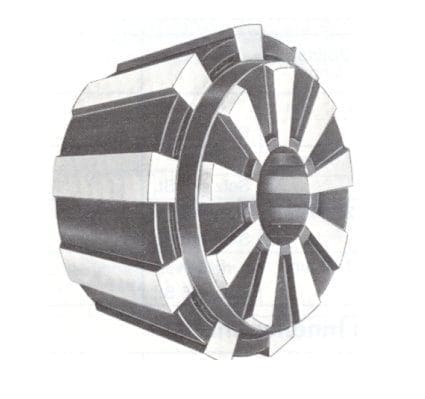

The machine is clamped to the pipe using a clamp collet round the pipe.
Clamping is carried out using a quick-clamp system. The cutting tool (toolbits) can be quickly and easily adjusted to the pipe diameter to be machined and the pipe can then be machined using the manual feed.
Technical specifications
| Range | 4 till 61 mm. O.D |
| Wall thickness | 0,3 till 10 mm, |
| Feed | Manual, 20 mm. travel |
| Clamping | clamping collets |
| Weight | 8 kg. |
| Motor | pneumatic or electric |
